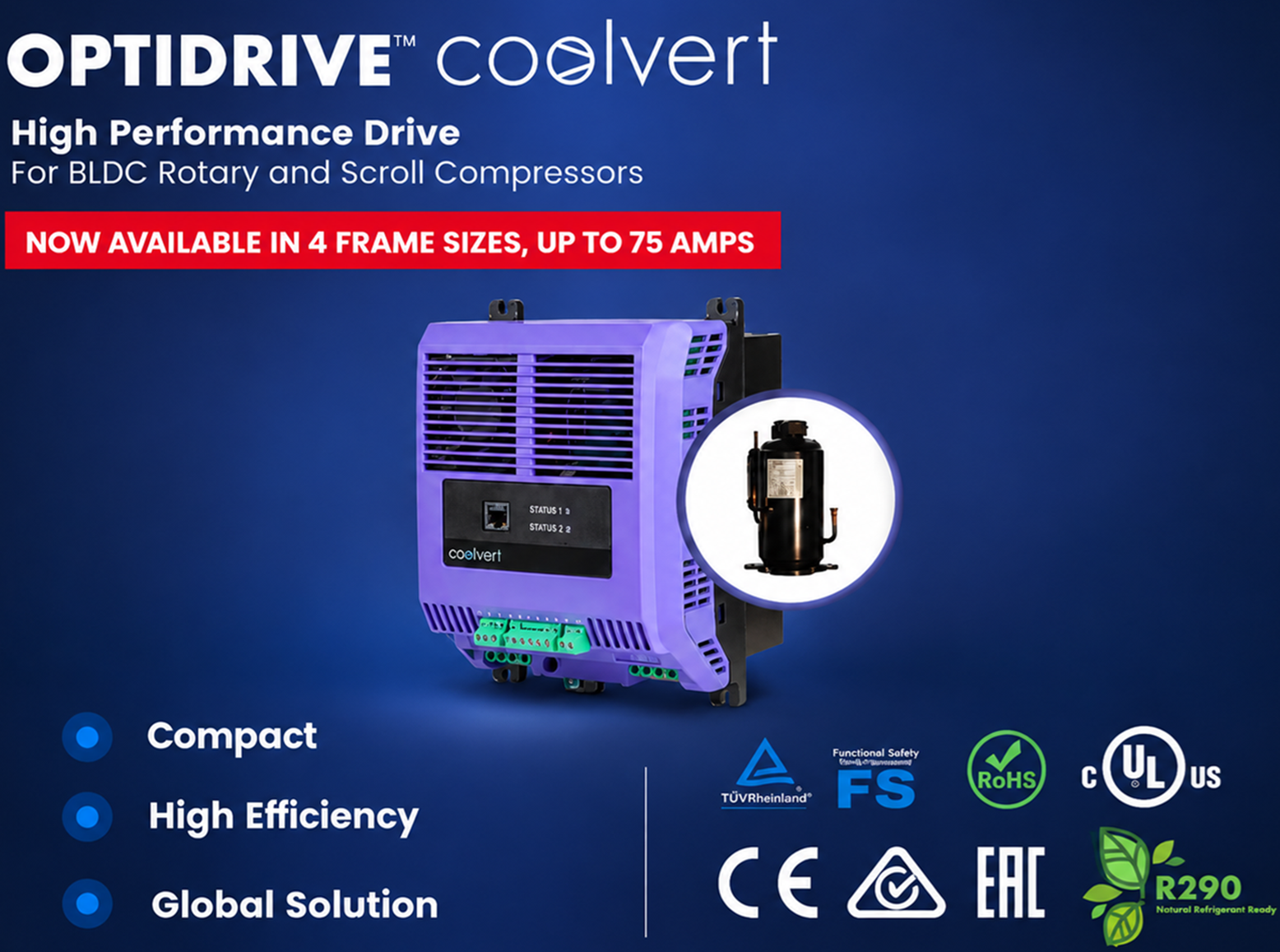

Optidrive Coolvert

High Performance Drive for BLDC Rotary and Scroll Compressors Through panel mounting allows the drive power electronics to be cooled by the chilled air. Allowing OEM’s to select the smallest electrical panel size, for the control electronics, while safely removing the heat generated by the drive, and maintaining IP rating. 100% made in UK Sumitomo Group Company. Compact design with through-panel mounting and a wide operating temperature range of −20°C to +60°C. The front enclosure is rated IP20, with IP55 protection at the rear. A cold-plate version is also available. Coated PCBs meet Class 3C2 requirements in accordance with EN60713-303. Built-in EMC filter, Class C1, in accordance with EN61800-3-2004. Compliant with EN61000-3-2 for single-phase 200–230V input and EN61000-3-12 for three-phase 380–480V input.

Supports Modbus RTU communication for easy integration with compatible systems. Compatible with any controller through pluggable screw terminals. Enables rapid parameter cloning and provides a Bluetooth interface for PC connectivity.

Supports multiple languages for convenient operation. Operates from −20°C to +60°C, making it suitable for a wide range of ambient conditions. Supports through-panel mounting, back-plate mounting, and cold-plate mounting for smaller panels. Safety: Features Safe Torque Off (STO), rated SIL 3.
